Scope of Work
Scope of Work
Engineering, sales, marketing, production and service of locally produced and imported products within the Egyptian market and internationally.
1- Main & Sub-main power distribution panels up to 6300 Amp.
2- Motor Control Centers (MCC)
3- Power Factor Correction Panels (PFC)
4- Synchronization Panels
5- Automatic Transfer Switches (ATS)
6- Sandwich type busducts
7- Medium voltage RMU
Engineering, sales, marketing, production and service of locally produced and imported products within the Egyptian market and internationally.
1- Main & Sub-main power distribution panels up to 6300 Amp.
2- Motor Control Centers (MCC)
3- Power Factor Correction Panels (PFC)
4- Synchronization Panels
5- Automatic Transfer Switches (ATS)
6- Sandwich type busducts
7- Medium voltage RMU
Projects Deliverable Samples
Products

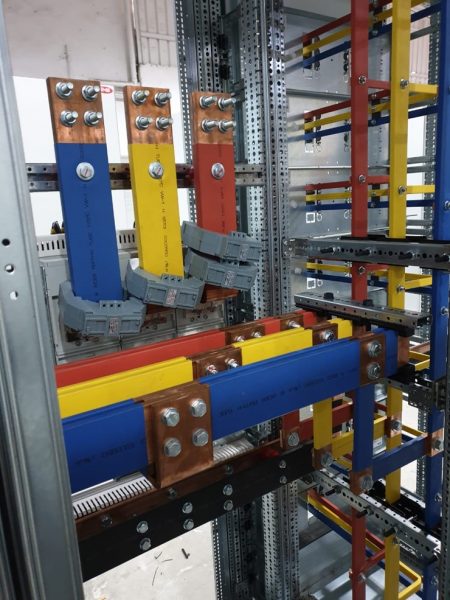

Main Distribution Panels
| Technical Details |
|---|
| Standards |
| Rated Voltage |
| Rated Current |
| Short Circuit Strenght |
| Enclosure Class |
| Cubical Dimensions Material (h-w-d) |
| GMS |
|---|
| IEC 61439-1-2 |
|
Rated insulation voltage: 1000V AC Rated operating voltage: 690V AC |
|
Horiz busbar system < 5000 A Vert busbar system < 1800 A |
|
Horiz busbar system < 100 KA, 1 s Vertical busbar system < 75 KA, 1 s |
| Up to 54 |
| 2200mm/400 - 1200mm/600 - 800mm |
| PRO E |
|---|
| IEC 61439-1-2 |
|
Rated insulation voltage: 1000V AC Rated operating voltage: 690V AC |
|
Horiz busbar system < 7000 A Vert busbar system < 2500 A |
|
Horiz busbar system < 120 KA, 1 s Vertical busbar system < 75 KA, 1 s |
| Up to 65 |
| 2200mm - 500/700/900 mm - 600/ 800mm |
| TRI Line |
|---|
| IEC 61439-1-2 |
|
Rated insulation voltage: 1000V AC Rated operating voltage: 690V AC |
|
Horiz busbar system < 5000 A Vert busbar system < 1800 A |
|
Horiz busbar system < 100 KA, 1 s Vertical busbar system < 75 KA, 1 s |
| Up to 54 |
| 2100mm - 400/1200 mm - 600/ 800mm |

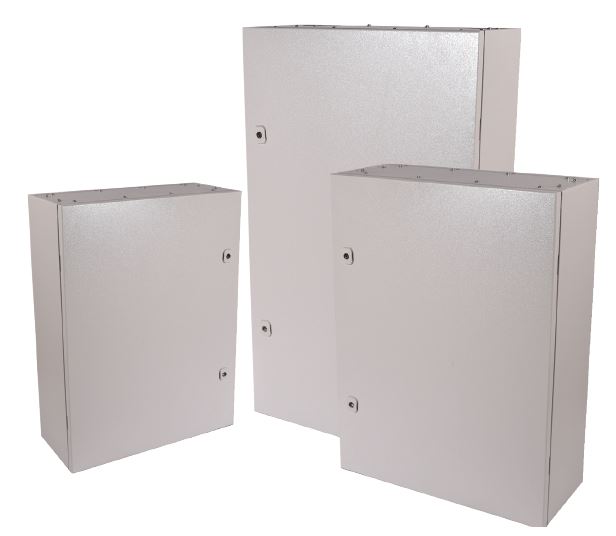

Sub-Distribution Panels
| Technical Details |
|---|
| Standards |
| Application |
| Max Load |
| Max Voltage |
| Rated Short Circuit Current |
| Degree of Protection |
| Unikit |
|---|
|
IEC 439-1/EN 604391/BS 60439 1&3
|
|
Indoor Outdoor |
|
250/630 amp - |
|
230/240 Vac 50/60 Hz |
|
35 KA |
| IP54 |
| Mini center |
|---|
| IEC 439-1/BS 60439 1&3 |
|
Indoor - |
|
100/250 amp - |
|
230/240 Vac 50/60 Hz |
| 35 KA |
| IP42, Pan assemblies IP 20 |
Components
Solutions
Presenting some of the solutions GMS provides to implement based on each project requirement
Automatic Transfer Switches
A transfer switch is an electrical switch that switches a load between two sources. Some transfer switches are manual, in that an operator effects the transfer by throwing a switch, while others are automatic and trigger when they sense one of the sources has lost or gained power.
Motor Control Center
A motor control center (MCC) is an assembly to control some or all electric motors in a central location. It consists of multiple enclosed sections having a common power bus and with each section containing a combination starter, which in turn consists of motor starter, fuses or circuit breaker, and power disconnect.
Power Factor Correction Panels
In electrical engineering, the power factor of an AC power system is defined as the ratio of the real power absorbed by the load to the apparent power flowing in the circuit, and is a dimensionless number in the closed interval of −1 to 1.
Synchronization Panels
In an alternating current electric power system, synchronization is the process of matching the frequency of a generator or other source to a running network. If two unconnected segments of a grid are to be connected to each other, they cannot exchange AC power until they are brought back into exact synchronization.
Ring Main Unit (RMU)
In an electrical power distribution system, a ring main unit (RMU) is a factory assembled, metal enclosed set of switchgear used at the load connection points of a ring-type distribution network. It includes in one unit two switches that can connect the load to either or both main conductors, and a fusible switch or circuit breaker and switch that feed a distribution transformer. The metal enclosed unit connects to the transformer either through a bus throat of standardized dimensions, or else through cables and is usually installed outdoors.
Sandwich Type busduct
In electric power distribution, a bus duct (also called busway) is a sheet metal duct or also cast resin insulated containing either copper or aluminium busbars for the purpose of conducting a substantial current of electricity. It is an alternative means of conducting electricity to power cables or cable bus.
Similar to cable tray, bus ducts have thicker, cold-formed steel side rails and thinner sheet metal coverings. Busbars inside may be separated with distinct and even gaps between them, or “sandwiched” together.
